Sonelastic® System for small specimens

For the non-destructive elastic moduli and damping characterization of materials at room temperature using the Impulse Excitation Technique in accordance with the ASTM E1876, C1259 and E756 standards.

Sonelastic® Systems for small technical ceramics
Sonelastic® System for small specimens with technical ceramics and biomaterials.

System general specifications:

  • Young's modulus range: from 0.5 to 900 GPa.
  • Frequency range: from 20 Hz to 96 kHz.
  • Vibration modes: Flexural, torsional and planar.
  • Dimensions range: from 15 mm to 120 mm (4 ¾ inches). For clamped specimens, the maximum length is 200 mm.
  • Geometries: Square or rectangular cross-sectioned bars, cylinders, discs and rings.
Square cross-section bars
  • Width and thickness (A): from 2 to 40 mm
  • Length (L): from 15 to 120 mm.
  • Aspect ratio: L/A ≥ 3.
Rectangular cross-section bars
  • Thickness (T): from 2 to 40 mm.
  • Width (W): from 2 to 40 mm.
  • Length (L): from 15 to 120* mm.
  • Aspect ratio: L/W ≥ 4 and W/T ≤ 8.
*For clamped samples, the maximum length is 200 mm.
Cylinders
  • Diameter (D): from 2 to 60 mm.
  • Length (L): from 15 to 120 mm.
  • Aspect ratio: L/D ≥ 2.
Discs
  • Thickness (T): from 1 to 8 mm.
  • Diameter (Do): from 15 to 80 mm.
  • Aspect ratio: D/T ≥ 10.
Rings
  • Thickness (T): from 1 to 8 mm.
  • External diameter (Do): from 15 to 80 mm.
  • Internal diameter (Di): from 0 to 40 mm.
  • Aspect ratio: Do/T ≥ 10 and Do/Di ≥ 2.

Items of this System:

  • 01 Sonelastic® Software license with updates for 5 years;
  • 01 Computer Dell Desktop Vostro 3681 with MS Windows;
  • 01 Signal acquisition PCIe card XONAR;

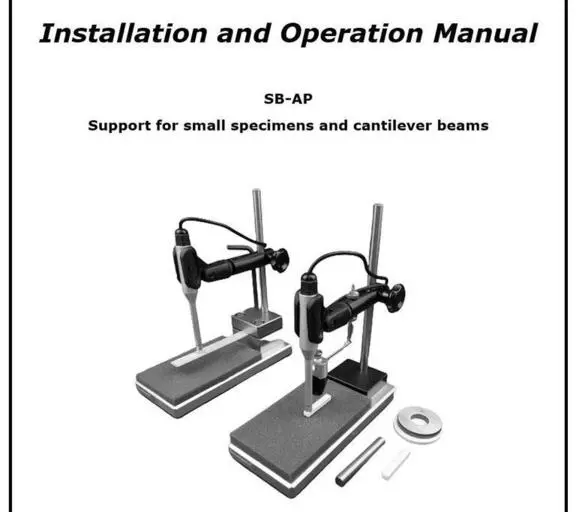

  • 01 SB-AP Support for small specimens and clamped beams;
  • 01 Set of manual impulse devices [01 light and 01 extra light];
  • 01 IED Automatic Impulse Device with 01 Light RT Impulse Device;
  • 01 CA-DP Acoustic Sensor with vertical mounting base;
  • Installation and operation manuals in English.
Basic configuration:
  • 01 Sonelastic® Software license with updates for 5 years [Catalog page 14];
  • 01 Signal acquisition PCIe card XONAR [Catalog page 12];
  • 01 SB-AP Support for small specimens and clamped beams [Catalog page 04];
  • 01 Set of manual impulse devices, 01 light and 01 extra light [Catalog page 09];
  • 01 CA-DP Acoustic Sensor with vertical mounting base [Catalog page 10];
  • Installation and operation manuals in English;
  • Shipping and online training.
Optional basic configuration items:
  • 01 Computer Dell Desktop Vostro 3681 with MS Windows [Catalog page 15];
  • 01 IED Automatic Impulse Device with 01 Light RT Impulse Device [Catalog page 08];
  • Shipping, installation and on-site training.
